MAC8 is a leading technology company and one of the most famous PCB hardware and accessories manufacturers in Japan. MAC8 Spacers, Connectors, Test Pins, Jumpers and Socket Pins are used by a myriad of industries.

PCB Hardware

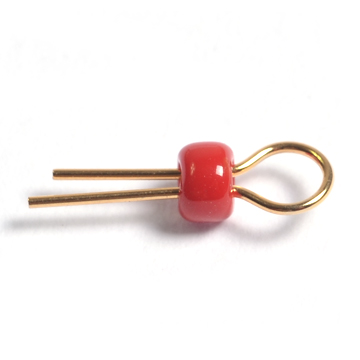

LC-1-G/LC-1-S

Test Pin

Test Pin (For Oscilloscope Probe)
[LC-1-G / LC-1-S] (1000pcs/pack)

  • Connect oscilloscope probe from any direction.
  • Every pins can keep same height with uneven point of this pin.
    (See dimension plan)
  • Make thorugh-hole diameter bigger than 1.4 phi mm.

Material Phosphorus Bronze 0.5mm
Finish Au plating over Ni (LC-1-G)
Sn plating over Ni (LC-1-S)
Recommended
through-hole
diameter (phi mm)		 1.2
